Tekton Integration

• Make sure that Tekton is set up as described in Tekton Installation Guide
  • Label: backstage.io/kubernetes-id: dev-hub-test-demo
• Now we are going to configure the Tekon integration within Developer Hub. In order to do so, we need to:
  • Enable the dynamic plugin for Tekton (and Kubernetes!!) by applying the following yaml to the dynamic plugins configuration (on anchor_01):

      plugins:
        - package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-tekton
          # documentation: https://docs.redhat.com/en/documentation/red_hat_plug-ins_for_backstage/1.0/html-single/tekton_plugin_for_backstage/index#setting-tekton-plugin
          disabled: false
        - package: ./dynamic-plugins/dist/backstage-plugin-kubernetes-backend-dynamic
          # documentation: https://backstage.io/docs/features/kubernetes/configuration/#config
          disabled: false
        - package: ./dynamic-plugins/dist/backstage-plugin-kubernetes
          disabled: false


  • Apply the following yaml to the Developer Hub config (on anchor_03):

    catalog:
      providers:
        ocm:
          default:
            kubernetesPluginRef: local-cluster
            name: multiclusterhub
            owner: group:rhdh
            schedule:
              frequency:
                seconds: 10
              timeout:
                seconds: 60


  • Apply the following yaml to the Developer Hub config (on anchor_01):

    kubernetes:
      clusterLocatorMethods:
        - clusters:
            - authProvider: serviceAccount
              name: local-cluster
              serviceAccountToken: ${RHDH_TEKTON_SERVICE_ACCOUNT_TOKEN}
              skipTLSVerify: true
              url: https://api.cluster-mq98c.mq98c.sandbox870.opentlc.com:6443
          type: config
      customResources:
        - apiVersion: v1beta1
          group: tekton.dev
          plural: pipelineruns
        - apiVersion: v1beta1
          group: tekton.dev
          plural: taskruns
        - apiVersion: v1
          group: route.openshift.io
          plural: routes
      serviceLocatorMethod:
        type: multiTenant


  • Now that the Tekton plugin is active, you’ll need to link it to a component. throughout this example, we will use the component defined over here: https://github.com/maarten-vandeperre/dev-hub-test-demo, the catalog-info.yaml more in particular. In that catalog-info file, you will need to add the following annotations:
    • janus-idp.io/tekton: dev-hub-test-demo
      • janus-idp.io/tekton: the annotation name to activate the Tekton plugin for this component.
      • dev-hub-test-demo: the id defined in the tekton pipeline label (see above)

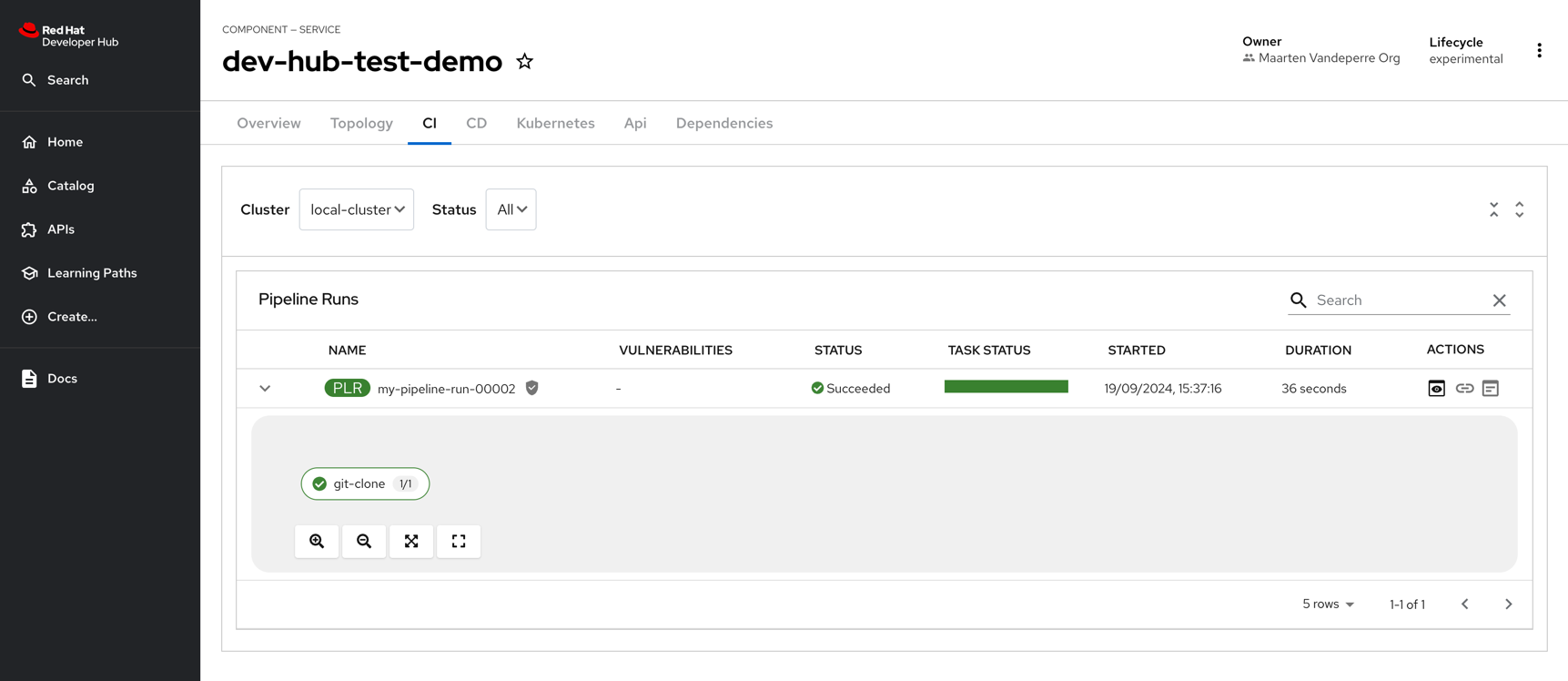

If you now go to the CI tab on the component detail, you’ll be able to see Tekton details:.

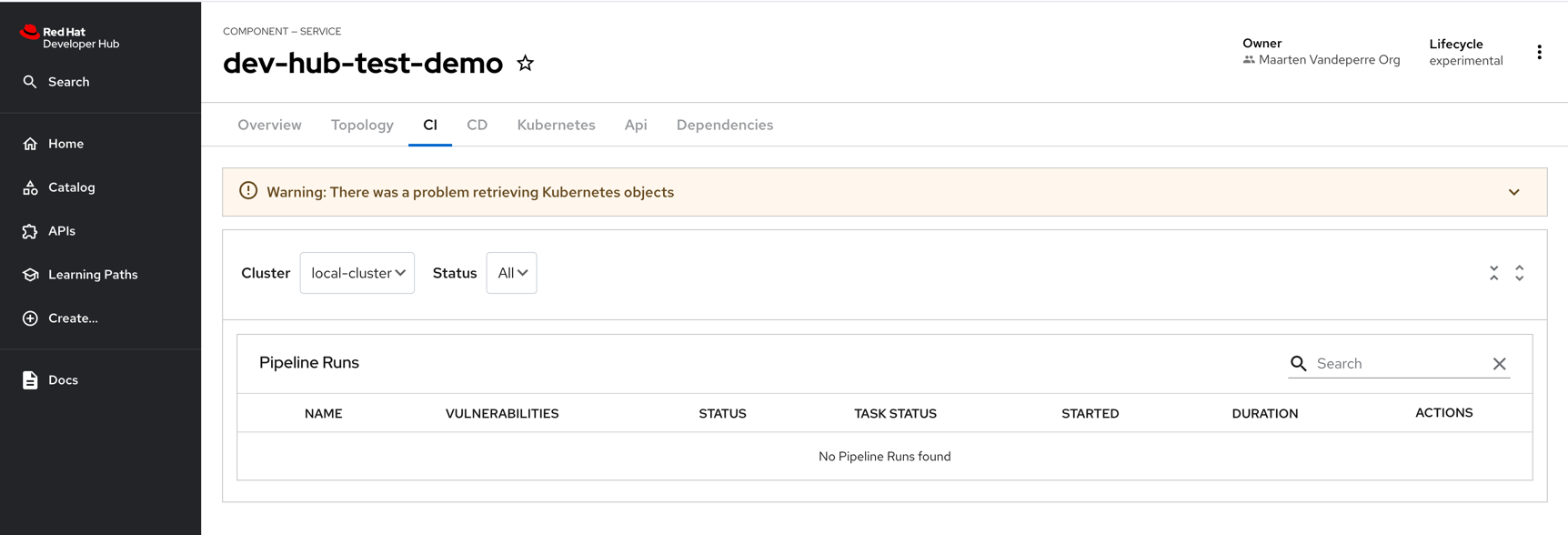

!!!Important: when you get the error “Warning: There was a problem retrieving Kubernetes objects”, it means that your service account token is expired.

You can fix it by running the following commands:

• sh scripts/script_configure_tekton_integration.sh
• oc apply -f secrets/generated/secret_tekton.yaml
