ArgoCD integration

Make sure that ArgoCD is set up as described in ArgoCD Installation Guide

Label: rht-gitops.com/demo-project: simple-hello-world-service-a

Now we are going to configure the ArgoCD integration within Developer Hub. In order to do so, we need to:

Enable the dynamic plugin for ArgoCD by applying the following yaml to the dynamic plugins configuration (on anchor_01):

  plugins:
    - package: ./dynamic-plugins/dist/roadiehq-backstage-plugin-argo-cd-backend-dynamic
      # documentation: https://docs.redhat.com/en/documentation/red_hat_developer_hub/0.1/html/argocd_plugin_for_backstage/argocd-plugin-for-backstage#installation
      # documentation: https://docs.redhat.com/en/documentation/red_hat_developer_hub/1.2/html/configuring_plugins_in_red_hat_developer_hub/rhdh-installing-dynamic-plugins#enabling-argo-cd-plugin
      disabled: false
    - package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-argocd
      disabled: false
    - package: ./dynamic-plugins/dist/roadiehq-scaffolder-backend-argocd-dynamic
      disabled: false

Apply the following yaml to the Developer Hub config (on anchor_01):

argocd:
  appLocatorMethods:
    - type: 'config'
      instances:
        - name: argoInstance1
          url: https://argocd-instance-server-demo-project.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com
          username: admin
          password: ${RHDH_ARGOCD_ADMIN_PWD}

Now that the ArgoCD plugin is active, you’ll need to link it to a component. throughout this example, we will use the component defined over here: https://github.com/maarten-vandeperre/dev-hub-test-demo, the catalog-info.yaml more in particular. In that catalog-info file, you will need to add the following annotations:
- argocd/app-selector: rht-gitops.com/demo-project=simple-hello-world-service-a
  - argocd/app-selector: the annotation name to activate the ArgoCD plugin for this component.
  - rht-gitops.com/demo-project=simple-hello-world-service-a: the label defined in the ArgoCD application definition (see above)
- argocd/instance-name: argoInstance1
  - argocd/instance-name: the annotation name to activate the ArgoCD plugin for this component.
  - argoInstance1: name of the ArgoCD instance, as defined in the app config.

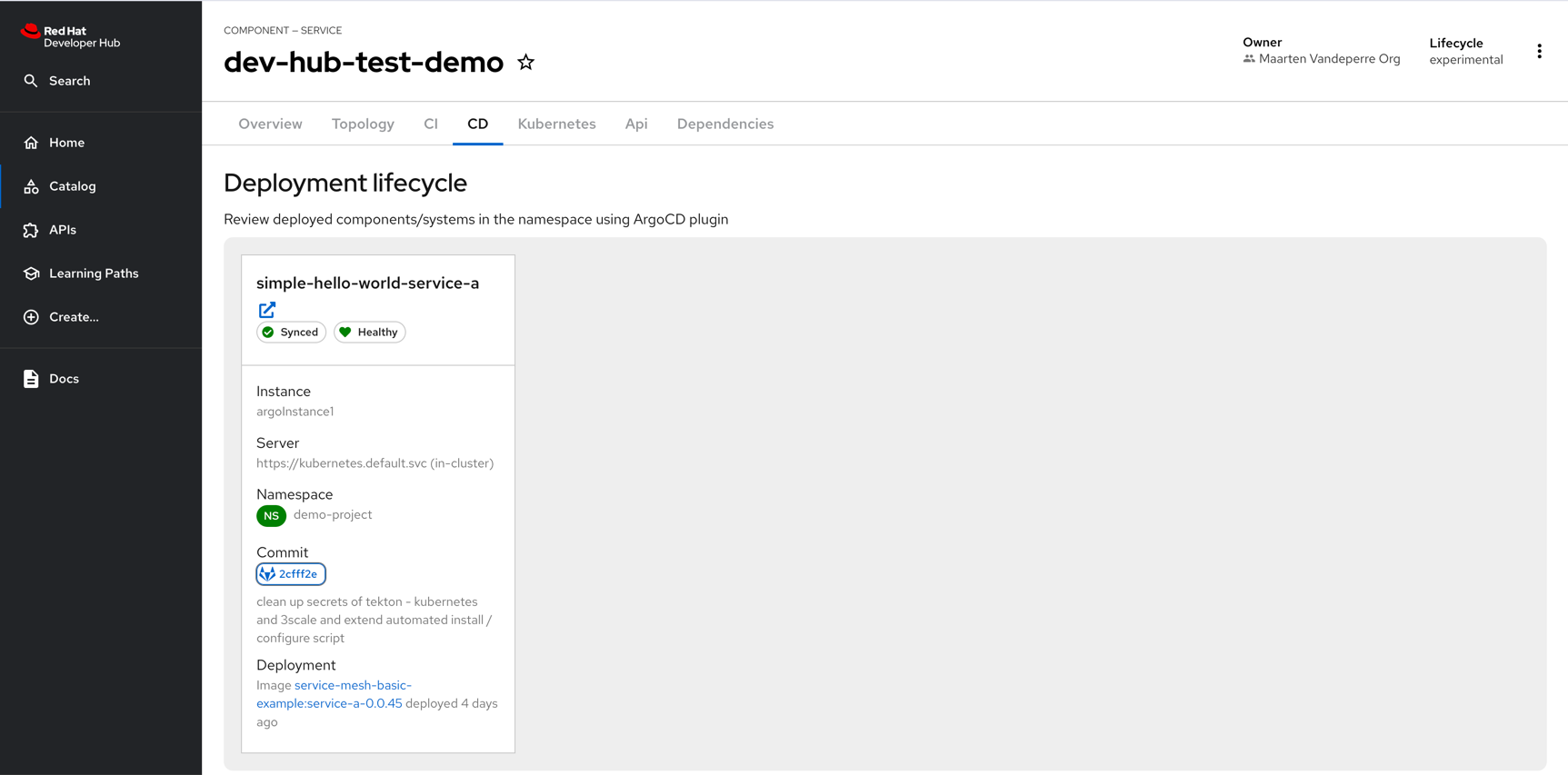

If you now go to the CD tab on the component detail, you’ll be able to see ArgoCD details:.

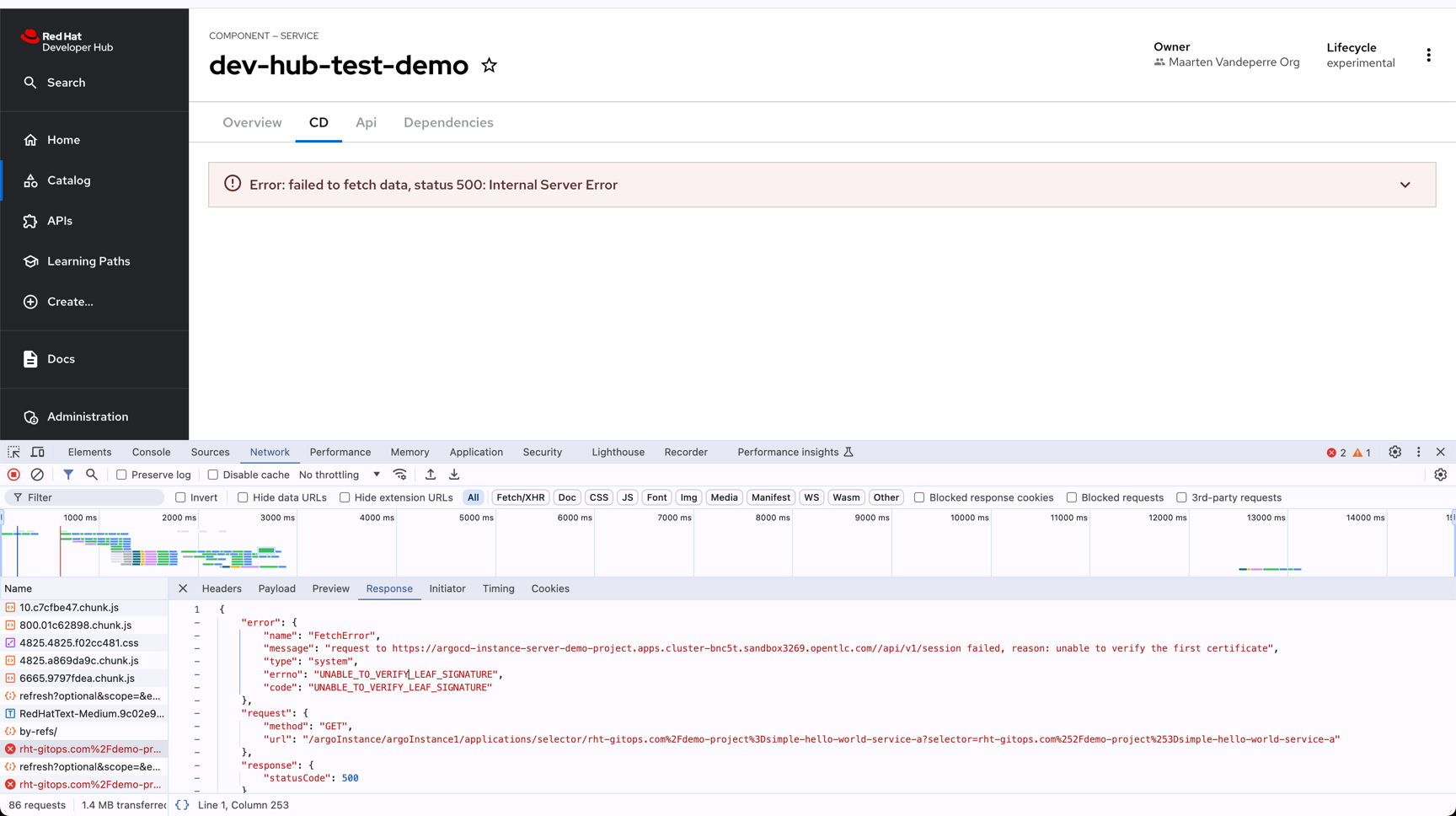

!!! Important: If you get an TLS error, check if your ArgoCD instance if using selfsigned certificates. If it does, make sure you disable certificate checkin in the backstage instance definition (i.e., avoid this in production!).

    extraEnvs:
      envs:
        # Disabling TLS verification
        - name: NODE_TLS_REJECT_UNAUTHORIZED
          value: '0'
