Keycloak infra setup

Setup

• Log in into OpenShift via the CLI (i.e., oc login ….)
• Install the operator in the ‘demo-project’ namespace.
• Apply the following yaml: TODO: make use of basedomain variable !!! be aware to change the root domain (i.e., apps.cluster-mq98c.mq98c.sandbox870.opentlc.com) to your own domain.

  apiVersion: k8s.keycloak.org/v2alpha1
  kind: Keycloak
  metadata:
  name: demo-keycloak-instance
  labels:
    app: sso
  namespace: demo-project
  spec:
  http:
    httpEnabled: true
  hostname:
    # following would be better and easier to secure, but for demo purposes,
    # we'll make both hostname and admin URL the same (fewer certificates' config)
    # adminUrl: 'https://admin.demo-keycloak-instance.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com'
    adminUrl: 'https://demo-keycloak-instance.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com'
    hostname: demo-keycloak-instance.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com
  instances: 1


• Wait for the operator to become ready and get the route to keycloak:

  oc get route $(oc get routes -n demo-project -o jsonpath='{range .items[*]}{.metadata.name}{"\n"}{end}' | grep demo-keycloak-instance) \
  -n demo-project \
  -o template --template=''\
  ; echo


• Get the admin secret:

  oc get secret demo-keycloak-instance-initial-admin -n demo-project -o template --template='' | base64 -d ; echo


• Log in into keycloak (i.e., https://demo-keycloak-instance.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com/)
• Configure the Red Hat Developer Hub realm (or import configurations/keycloak/keycloak-realm-import.json directly into keycloak or apply the realm import yaml in OpenShift (but make sure that you have persistent storage under keycloak then): gitops/keycloak/keycloak-realm.yaml):
  • Create realm: rhdh
  • Create Confidential client: rhdh-client
    • Root URL: empty
    • Valid redirect URIs: /* (see section 'Install Red Hat Developer Hub via operator' in the README to retrieve the URL if you don't find it).

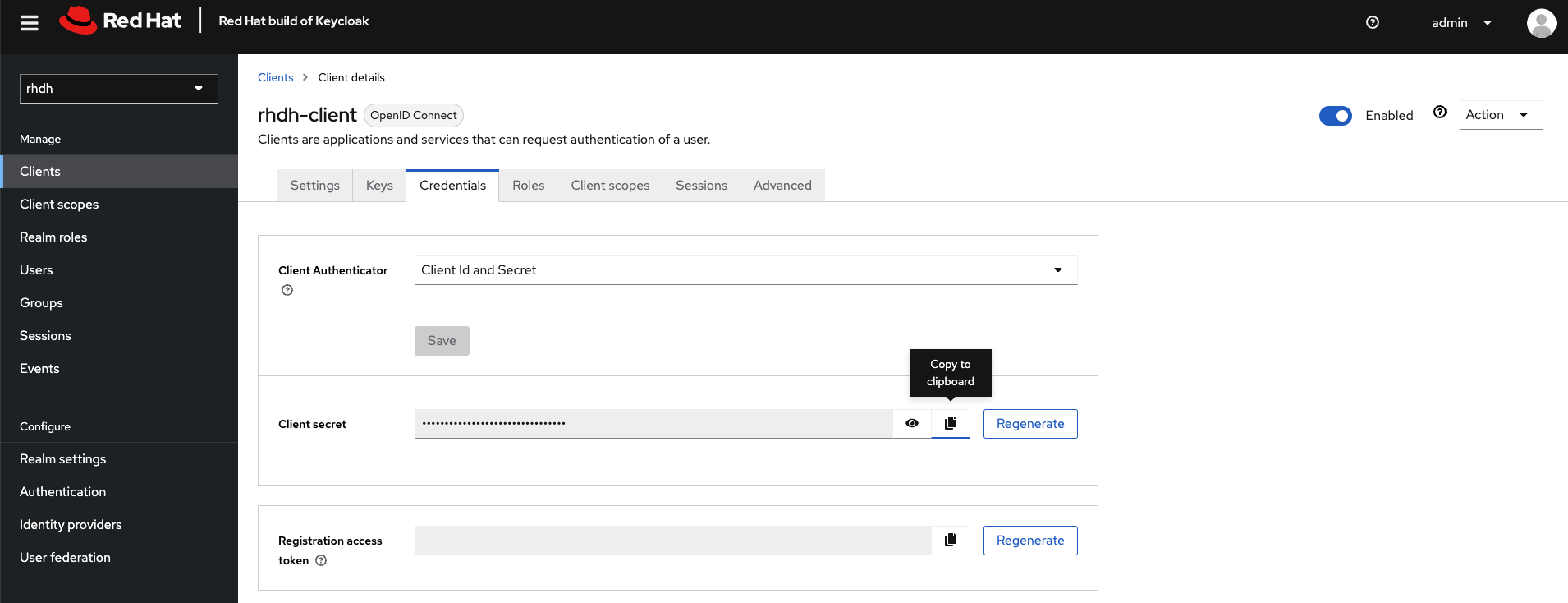

    • Take the secret from the client



    • Service account must be enabled
    • The following roles must be added from the realm-management client role:
      • query-groups
      • query-users
      • view-users
  • Create user
    • username: user1
    • email: user1@rhdh-demo.com
    • email verified: true
    • first name: user1
    • last name: rhdh-demo
    • Now go to credentials tab and click “set password”
      • password: rhdh
      • temporary: off
