This all is 100% open source, so if you would like to contribute, feel free to edit this page.

Enable Component scanning (i.e., catalog entity)

In order to enable software templates (for GitHub), the only thing you’ll need to do, is configuring a GitHub application that has the permission to create Git repositories (see How to configure GitHub applications).

Make sure you have the values for the following fields:

Personal Access Token (not GitHub application related, but user bound).
Application ID
Application’s Client ID
Application’s Client Secret
Application’s Private Key

If you are not making use of the script_init_cluster script, you will need to add it to a config map. A config map template can be found in secrets/raw/secret_github_integration. If you make use of the script_init_cluster script, then it will be asked upon startup (and be places in the secrets/generated folder).

Now that we have the values in our config map, we’ll need to add the config map to the developer hub instance definition configuration like this (rhdh-secrets should already be there):

  secrets:
    - name: rhdh-secrets # added
    - name: rhdh-secrets-github-integration

Now, add a GitHub integration configuration by applying the following yaml to the Developer Hub Config on anchor_02:

integrations:
  github:
    - host: github.com
      token: ${RHDH_GITHUB_INTEGRATION_PERSONAL_ACCESS_TOKEN}
      apps:
        - appId: ${RHDH_GITHUB_INTEGRATION_APP_ID}
          clientId: ${RHDH_GITHUB_INTEGRATION_APP_CLIENT_ID}
          clientSecret: ${RHDH_GITHUB_INTEGRATION_APP_CLIENT_SECRET}
          webhookUrl: none
          webhookSecret: none
          privateKey: ${RHDH_GITHUB_INTEGRATION_APP_PRIVATE_KEY}

Note: I am adding the personal access token over here, mainly because I am lazy. You can make it a part of the software template’s input parameters as well. Difference in between the two solutions: in this solution you’ll need some kind of system user account to be bound to developer hub, if you ask it in the software template, it will be bound to the user who initiated the template.

If you want to see it in a complete configuration file, feel free to have a look at gitops/developer-hub/11_app-config-rhdh.yaml, which contains all the integrations, described in this README file.

Now we need to add the software template, for this we will go to the “create…” menu item and follow the following steps:

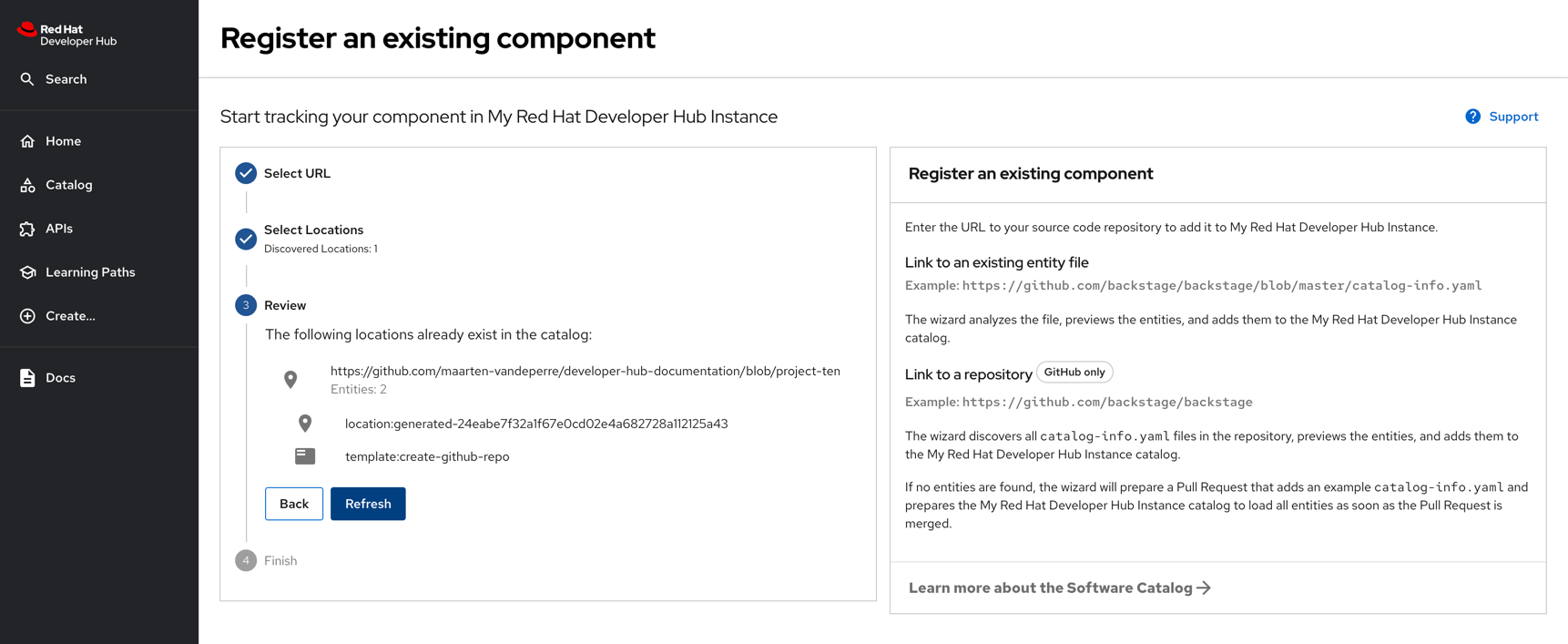

Click on the button “Register Existing Component”.
Fill the following URL and click analyze: https://github.com/maarten-vandeperre/developer-hub-documentation/tree/main/configurations/software-templates/simple-hello-world/template.yaml.
Click “refresh” button.

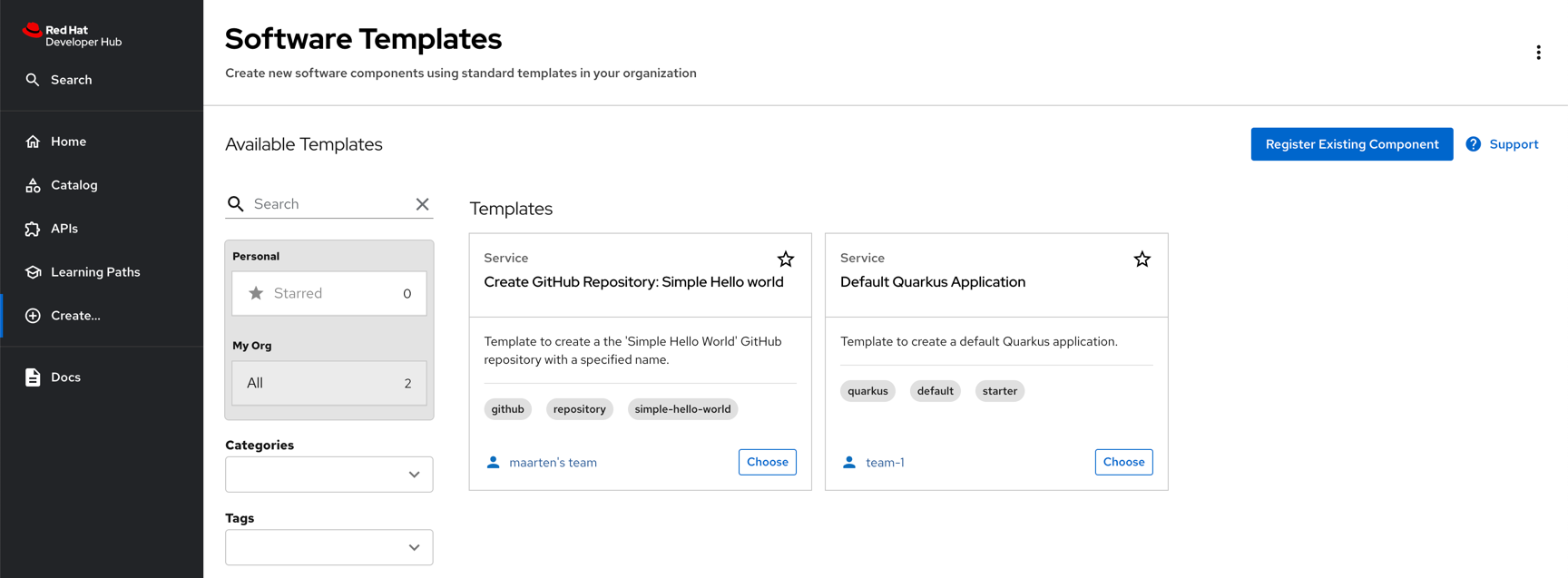

No need to click “Register another”, you can just click the “create…” menu item again and the template should be visible now:

A software template is defined by

A GitHub (submodule in) repository. In my example: https://github.com/maarten-vandeperre/developer-hub-documentation/tree/main/configurations/software-templates/simple-hello-world.
A template.yaml file which defines the catalog entity type “Template” (See section Define the catalog entities).
Most of the time a skeleton folder (unless defined differently in the template.yaml file), which contains the source code. This code can be parameterized: check e.g., skeleton/catalog-info.yaml, which is using the name and owner field, which are defined in the template.yaml file and initiated during template initiation.

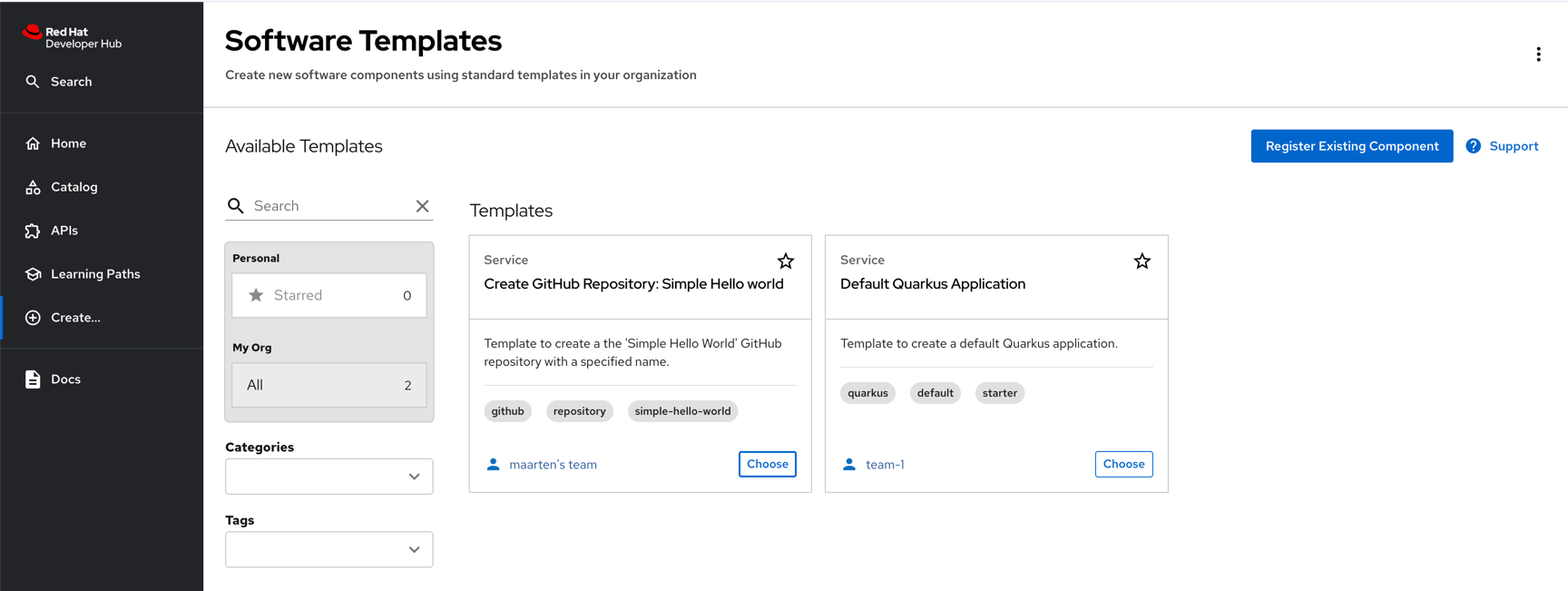

Initiating the software template When you have the catalog with the templates, pick the template you want to initiate and click “Choose”.

GtiHub

Now you can initiate the template. I use the following values:

Repository name: dev-hub-test-demo
Name: dev-hub-test-demo
Owner: maarten-vandeperre-org

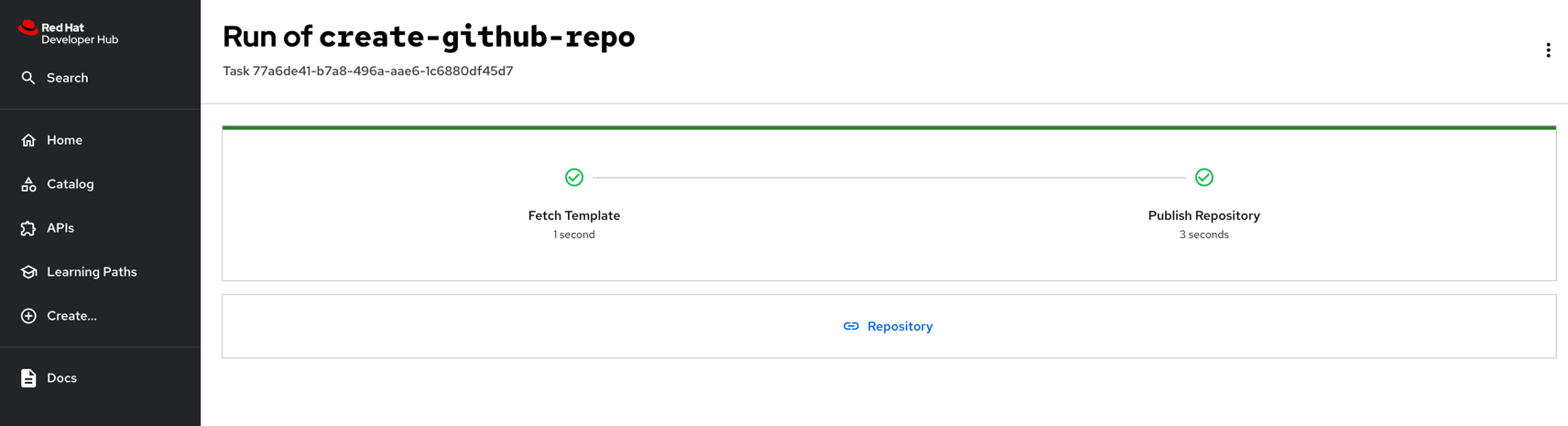

Click “Review” and click “Create”, and you should be able to see the link to the new repository or you will see it in GitHub:

GtiHub
