Tech Docs Configuration - Minio S3 (source)

Make sure that Minio S3 is set up as described in Minio S3 tech docs (static content) configuration

Now we’ll need to enable the tech docs plugin by applying the following yaml to the dynamic plugins configuration (on anchor_01):

  plugins:
    - package: ./dynamic-plugins/dist/backstage-plugin-techdocs-backend-dynamic
      disabled: false
      pluginConfig: {}

When the dynamic plugin is enabled, we’ll need to configure our developer hub instance to read from the correct bucket. For that, we have to apply the following yaml to the Developer Hub Config on anchor_02:

  techdocs:
    builder: external
    generator:
      runIn: local
    publisher:
      type: 'awsS3'
      awsS3:  # awsS3, even if it is minio
        bucketName: minio-tech-docs
        credentials:
          accessKeyId: <...>
          secretAccessKey: <...>
        region: eu-west-3
        endpoint: https://minio-api-demo-project.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com
        s3ForcePathStyle: true
        sse: 'AES256'

As documentation should not be rendered on the fly (according to the recommended deployment model), we need to make sure that information is fetched by the tech docs plugin (upfront), by applying the following yaml to the dynamic plugins configuration (on anchor_03):

catalog:
providers:
 awsS3: # awsS3, even if it is minio
   default: # identifies your dataset / provider independent of config changes
     bucketName: minio-tech-docs
     #prefix: prefix/ # optional
     region: eu-west-3 # optional, uses the default region otherwise
     schedule: # same options as in TaskScheduleDefinition
       # supports cron, ISO duration, "human duration" as used in code
       #frequency: { minutes: 30 }
       frequency: { minutes: 1 }
       # supports ISO duration, "human duration" as used in code
       timeout: { minutes: 3 }
       initialDelay: { seconds: 15 }

Now that we have our config set up, it’s time to add/publish our documentation in S3. (You can describe the following process in e.g., GitHub actions as well):
- Create a GIT repository in which you will store your static documentation (over here, a mimic of a GIT repository: configurations/techdocs/static-content).
- Static (source) content is available in the configurations/techdocs/static-content folder. Important to note is that these should be markdown files.
- Install techdocs-cli
- Go to the root of your documentation repository (configurations/techdocs/static-content)
- Generate the content to be showed in Developer Hub:
```
techdocs-cli generate --no-docker --verbose
```
  Or run it from the root of this repository:
```
techdocs-cli generate --source-dir ./configurations/techdocs/static-content --output-dir ./configurations/techdocs/static-content/minio-s3/site --no-docker --verbose
```
- A folder ‘configurations/techdocs/static-content/minio-s3/site’ should be created now.
- Publish the static content to the S3 bucket by running the following script scripts/script_configure_minio.sh. !! be aware: If you change the component name (i.e., maartens-first-documentation), make sure that you change it as well in catalog-info.yaml and mkdocs.yaml configuration files within the documentation repository, as they are linked to each other by name.
We now have the configuration and the static content set up. We now only need to add it as a component in Developer Hub:
- Open Developer Hub.
- Click “create”:
- Add the URL of the catalog-info.yaml in the URL section (i.e., for me it is https://github.com/maarten-vandeperre/developer-hub-documentation/blob/main/configurations/techdocs/static-content/minio-s3/catalog-info.yaml).
- Click on ‘Analyze’ and ‘Create’.

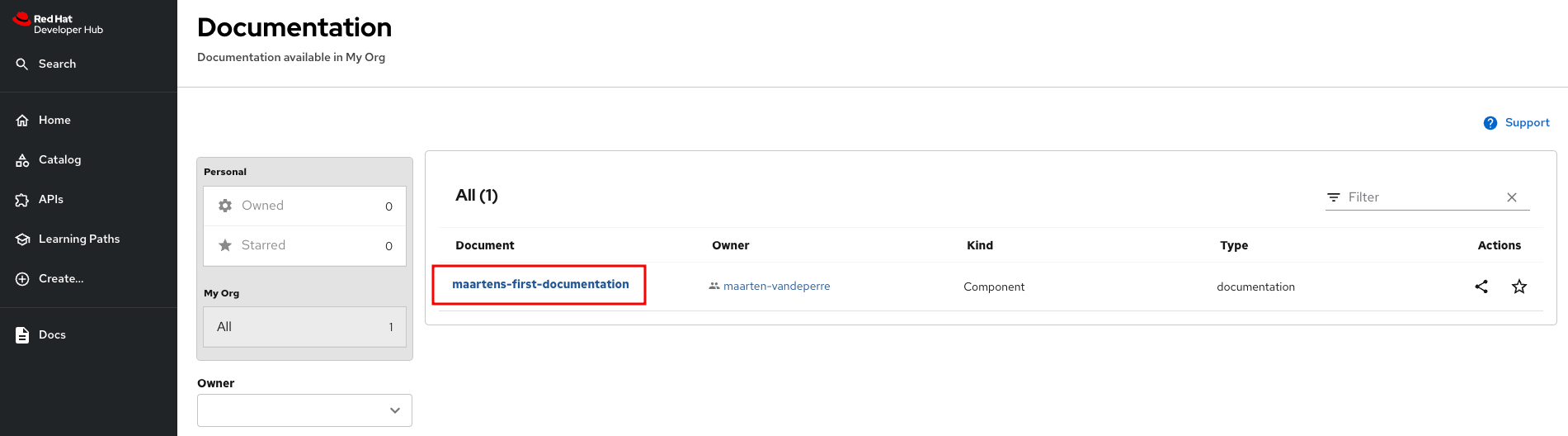

- Now go to “Docs” menu item and you should be able to see your documentation:
