Keycloak Auth

Make sure that Keycloak is set up as described in Keycloak Installation Guide

Get the base url
Realm: rhdh
ClientId: rhdh-client
ClientSecret: view/copy it from keycloak

Now we are going to configure OpenID (Keycloak for us) to allow OpenID-based authentication within Developer Hub. Apply the following yaml definition to the Developer Hub Config on anchor_01:

auth:
  environment: development
  session:
    secret: ${BACKEND_SECRET}
  providers:
    oidc:
      development:
#        metadataUrl: <keycloak_base_url>/realms/rhdh/.well-known/openid-configuration # ${AUTH_OIDC_METADATA_URL}
        metadataUrl: https://demo-keycloak-instance.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com/realms/rhdh/.well-known/openid-configuration # ${AUTH_OIDC_METADATA_URL}
        clientId: rhdh-client # ${AUTH_OIDC_CLIENT_ID}
        clientSecret: 7iKyQUwyApIojzOlSj82vUWIhejv41E5 # ${AUTH_OIDC_CLIENT_SECRET}
        prompt: auto # ${AUTH_OIDC_PROMPT} # recommended to use auto
        ## uncomment for additional configuration options
        # callbackUrl: ${AUTH_OIDC_CALLBACK_URL}
        # tokenEndpointAuthMethod: ${AUTH_OIDC_TOKEN_ENDPOINT_METHOD}
        # tokenSignedResponseAlg: ${AUTH_OIDC_SIGNED_RESPONSE_ALG}
        # scope: ${AUTH_OIDC_SCOPE}
        ## Auth provider will try each resolver until it succeeds. Uncomment the resolvers you want to use to override the default resolver: `emailLocalPartMatchingUserEntityName`
        signIn:
          resolvers:
            - resolver: preferredUsernameMatchingUserEntityName
        #    - resolver: emailMatchingUserEntityProfileEmail
        #    - resolver: emailLocalPartMatchingUserEntityName

By applying above config, you enable a new authentication provider to be used. By adding this info, the provider is not yet in use. In order to start using this oidc (i.e. OpenId Connect) provider, we have to apply the following yaml to the Developer Hub Config on anchor_02.
```
signInPage: oidc
```

As a last step we need to make sure that the Keycloak users are synced with the Developer Hub’s user catalog. In order to do so, we need to:

Enable the dynamic plugin for Keycloak by applying the following yaml to the dynamic plugins configuration (on anchor_01):

  plugins:
    - package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-keycloak-backend-dynamic
      disabled: false
      pluginConfig: {}

Apply the following yaml to the Developer Hub config (on anchor_03):

catalog:
  providers:
    keycloakOrg:
      default:
        baseUrl: https://demo-keycloak-instance.apps.cluster-mq98c.mq98c.sandbox870.opentlc.com
        loginRealm: rhdh # ${KEYCLOAK_REALM} TODO enable via secret
        realm: rhdh # ${KEYCLOAK_REALM} TODO enable via secret
        clientId: rhdh-client # ${KEYCLOAK_CLIENTID} TODO enable via secret
        clientSecret: 7iKyQUwyApIojzOlSj82vUWIhejv41E5 # ${KEYCLOAK_CLIENTSECRET} TODO enable via secret
        # highlight-add-start
        schedule: # optional; same options as in TaskScheduleDefinition
          # supports cron, ISO duration, "human duration" as used in code
          frequency: { minutes: 1 }
          # supports ISO duration, "human duration" as used in code
          timeout: { minutes: 1 }
          initialDelay: { seconds: 15 }
          # highlight-add-end

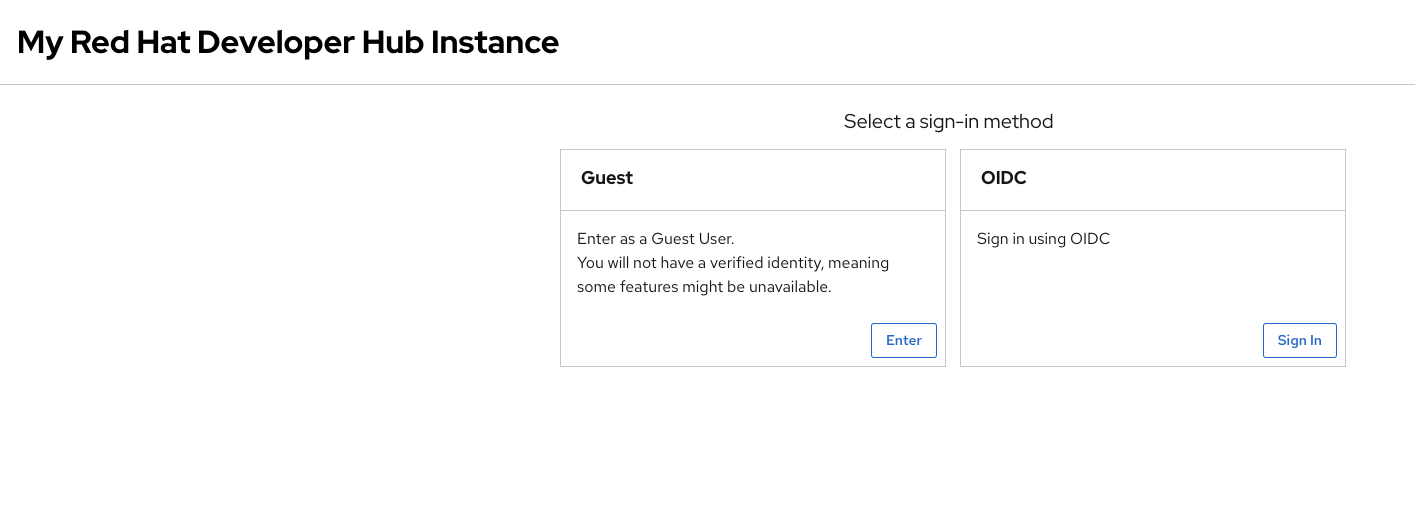

Now the login screen should be changed to:

If you now create groups and users within Keycloak’s rhdh realm, they will become visible in Developer Hub: Catalog > Groups and Users.
